55 GSL-3

55-GSL-3

55 GSL-3

True 55 ton capacity of 110,000 lbs. in 12′.
Reinforced for a 4th axle and spreader bar.
275 sized tires.
Load Capacity: 110,000 lbs.
GVWR: 132,650 lbs.

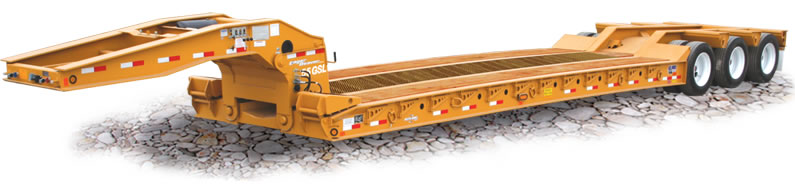

Shown with Bucket Pocket and Optional 4th Flip Axle
All-Wheel ABS (4S3M) With Spring Brakes On All Axles
4 Beam 16" Deep Cambered I-Beam Mainframe & Siderails
10" Deep Crossmembers Pierced Through Mainframe
25,000 # Axles, 5" Diameter (3/4" Wall), Maximum Track Width
275 / 70R 22.5 Radial Tires On Hub-Piloted Disc Wheels
Cush Air Ride Suspension – 75,000 # Capacity, Air Lift 3rd Axle
